How a frequency converter works

2023-10-17

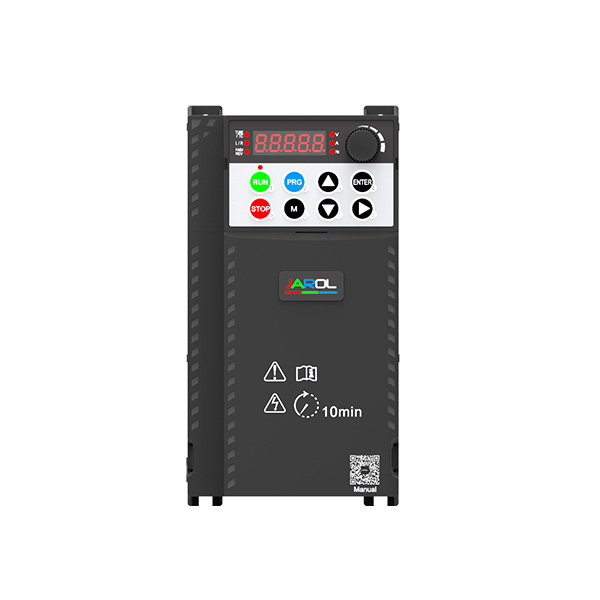

A frequency converter, also known as a variable frequency drive (VFD) or an inverter, is an electronic device used to control the speed and torque of an electric motor by varying the frequency and voltage of the electrical power supplied to it. It is commonly used in industrial applications to achieve precise motor control and energy efficiency.

Here's how a frequency converter works:

1. AC to DC Conversion: The frequency converter takes an alternating current (AC) input from the power source and converts it into direct current (DC) using a rectifier. The rectifier typically consists of diodes that convert the AC waveform into a pulsating DC waveform.

2. DC Link: The pulsating DC is then filtered and smoothed using capacitors in the DC link section of the frequency converter. This ensures a stable DC voltage supply to the next stage.

3. Inverter Stage: The DC voltage is then fed into an inverter stage, which converts the DC power back into alternating current (AC) with a variable frequency and voltage. The inverter uses insulated-gate bipolar transistors (IGBTs) or other power electronic devices to switch the DC voltage at high frequencies, generating a variable frequency AC output.

4. Motor Control: The variable frequency AC output from the inverter is supplied to the motor, allowing precise control over the motor's speed and torque. By adjusting the frequency and voltage of the output, the frequency converter can regulate the motor's speed and match it to the desired application requirements.

Key features and benefits of frequency converters include:

1. Speed Control: Frequency converters enable precise control over motor speed, allowing for optimal performance and energy savings. They are commonly used in applications where speed control is critical, such as pumps, fans, conveyors, and machine tools.

2. Energy Efficiency: By adjusting the motor speed according to the load requirements, frequency converters can significantly reduce energy consumption compared to traditional fixed-speed motor setups. The ability to match motor speed to the application's needs helps to optimize energy usage.

3. Soft Start and Stop: Frequency converters provide soft start and stop functions, gradually ramping up or down the motor speed. This reduces mechanical stress on the motor and connected equipment, extending their lifespan and reducing maintenance costs.

4. Reverse Operation: Frequency converters allow motors to operate in reverse, which is beneficial in applications where bidirectional motor control is required, such as cranes or conveyor systems.

5. Motor Protection: Frequency converters offer various motor protection features, including overvoltage protection, undervoltage protection, overload protection, and short circuit protection. These features help safeguard the motor against potential electrical faults or abnormal operating conditions.

Frequency converters are available in various sizes and power ratings to accommodate different motor types and applications. They are widely used in industries such as manufacturing, HVAC systems, water treatment plants, renewable energy systems, and many more, where precise motor control and energy efficiency are crucial.
