Aspects of copper cable lugs

2023-10-17

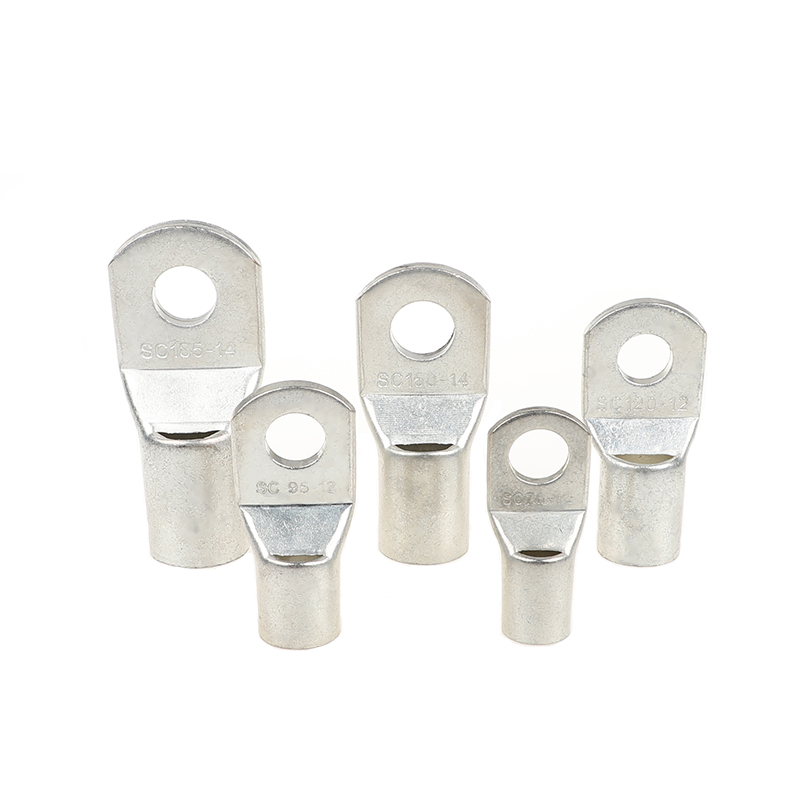

Copper cable lugs are electrical connectors used to connect cables or wires to electrical equipment, such as circuit breakers, switches, transformers, or other components. They are primarily made from copper due to its excellent electrical conductivity and corrosion resistance. These lugs play a crucial role in establishing a secure and efficient electrical connection between cables and devices.

Key features and aspects of copper cable lugs include:

1. Material: Copper is the most commonly used material for cable lugs due to its high electrical conductivity, which ensures minimal energy loss and efficient power transmission.

2. Types: There are different types of copper cable lugs designed for various applications, including ring lugs, spade lugs, pin lugs, and more. Each type is suitable for specific connection needs.

3. Design: Cable lugs are designed with a hole or connection point where the cable is inserted. The lug is then crimped or soldered to the cable, providing a secure and stable connection.

4. Crimping: Crimping is a common method used to attach a copper cable lug to a cable. This process involves compressing the lug around the cable using a specialized crimping tool. The compression ensures a tight connection that minimizes resistance and prevents the lug from coming loose.

5. Soldering: In some cases, copper cable lugs can be soldered to cables. This involves melting solder onto the connection point to create a solid and reliable joint. Soldering provides excellent electrical conductivity and mechanical strength.

6. Sizes: Copper cable lugs come in various sizes to accommodate different cable diameters and current carrying capacities. It's essential to select the right size of lug for the cable to ensure a proper fit and reliable connection.

7. Insulation: Depending on the application, some cable lugs may come with insulation sleeves or covers to protect against accidental contact and electrical hazards.

8. Applications: Copper cable lugs are widely used in industrial, commercial, and residential settings for power distribution, electrical panels, machinery, automotive wiring, and more.

When working with copper cable lugs, it's important to follow proper installation procedures to ensure the safety and effectiveness of the electrical connections. This includes selecting the appropriate lug size, using the correct crimping or soldering techniques, and complying with relevant electrical codes and standards.

Overall, copper cable lugs play a vital role in maintaining reliable electrical connections in various applications, contributing to the efficient and safe distribution of electrical power.
